- Place of Origin: SHANGHAI
- Brand Name: SECOV
- Model Number: KLAI-110

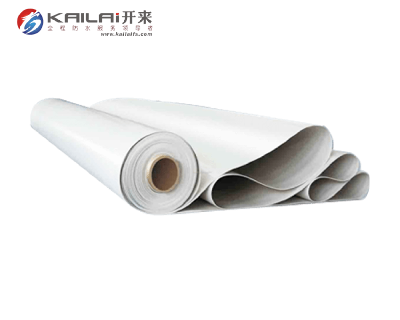

DescriptionPolyvinyl chloride plastic(PCV) Self-adhesive Waterproof membrane is a new polymer waterproof membrane which is made from polyvinyl chloride resin,and mixed with plasticizer,filler,antioxygen,ultraviolet absorber and other auxiliaries, the lower surface is coated with non-asphaltic base environmentally friendly adhesive.
Classified:
- H- Homogeneous PVC membrane
- L- PVC membrane with fabric backing
- P- Reinforced with polyester felt
- G Glass fiber reinforced membrane
- GL Glass fiber reinforced with fabric backing membraneFeature(1)One waterproofing ,two proofing,the waterproofing is more reliability
(2)High tensile strength, good elongation and dimensional stability.
(3)Waterproofing performance will not be effected by major structural settlement,ground water seepage could be prevented effectively.
(4)Excellent aging resistance,long lifetime,no pollution.
(5)Welding installation. Joints are solid and environment friendly,
(6)-25℃ has good flexibility.
(7)The surface could reflect ultraviolet irradiation,low temperature.
(8)Good plasticity, easy and suitable for details installation.
Technical Index
| NO | Test Item | Technical Index | |
| 1 | Pull(N/50mm) ≧ | 800 | |
| 2 | Membrane elongation at break,% ≧ | 450 | |
| 3 | Nail tear resistance / N ≧ | 500 | |
| 4 | Tear resistance, N/mm ≧ | 60 | |
| 5 | Impact property | Diameter(10±0.1)mm,no leakage | |
| 6 | Static loads | 20kg,no leakage | |
| 7 | Heat resistance | 70 ℃,2h,no displacement,no flowing,no dripping | |
| 8 | Cold bending | -25℃ no crack | |
| 9 | Anti-fluid-water | 0.6Mpa,no leakage | |
| 10 | Peeling strength with Post pouring concrete, N/mm | No treament | 2 |
| Surface contaminated by cement | 1.5 | ||
| Surface contaminated by sediment | 1.5 | ||
| Ultraviolet aging | 1.5 | ||
| Thermal ageing | 1.5 | ||
| 11 | Peeling strength with Post pouring concrete wetting, N/mm | 1.5 | |
| 12 | Mechanical property on joint | shear strength N/50mm ≧ | 500 or specimens damage |
| Peeling strength N/mm ≧ | 1.2 | ||
| 13 | Alkali resistance( saturation Ca(OH)2 solution, Room tp168h) | strength retention % ≧ | 90 |
| elongation retention % ≧ | 80 | ||
| Cold bending | -25℃, no crack | ||
| 14 | Thermal ageing(70℃,168h) | strength retention % ≧ | 90 |
| elongation retention % ≧ | 80 | ||
| Cold bending | -18℃, no crack | ||
Application Range
All kinds of basement,subways,tunnels,highway, air raid shelter,artificial lake, dam, water reservoir, grain storehouse and etc.
